Share a Plan

Export your Plans to share with others, or import Plans from the community.

Security Consideration

Always review imported plans before running them. Plans control your robot's hardware and could cause damage if malicious or poorly written. Only import plans from sources you trust.

Plan file format

Plans are stored as .opal files containing:

• Plan source code
• Metadata (name, description, author)
• Hardware requirements
• Configuration defaults

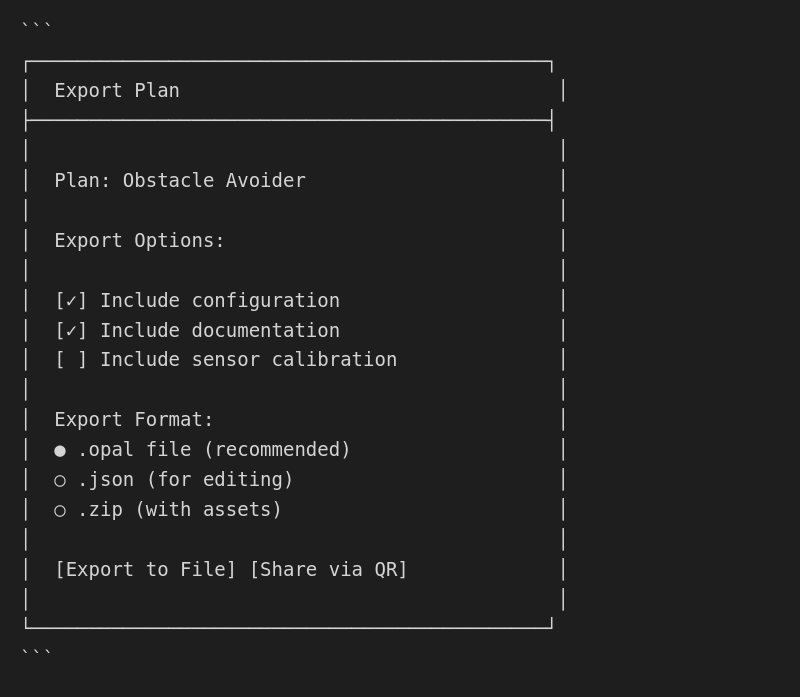

Export a plan

From the Agent UI

1. Open ☰ Menu → Plans
2. Select the Plan to export
3. Tap [⋮] → [Export]

Export location

Files are saved to:

• Linux: ~/Documents/OctoMY/Plans/
• Android: Downloads/OctoMY/Plans/
• Windows: Documents\OctoMY\Plans\

Via command line

# Export a specific plan
./agent --export-plan "Obstacle Avoider" --output ~/my-plan.opal

# Export all plans
./agent --export-all-plans --output ~/octomy-plans/

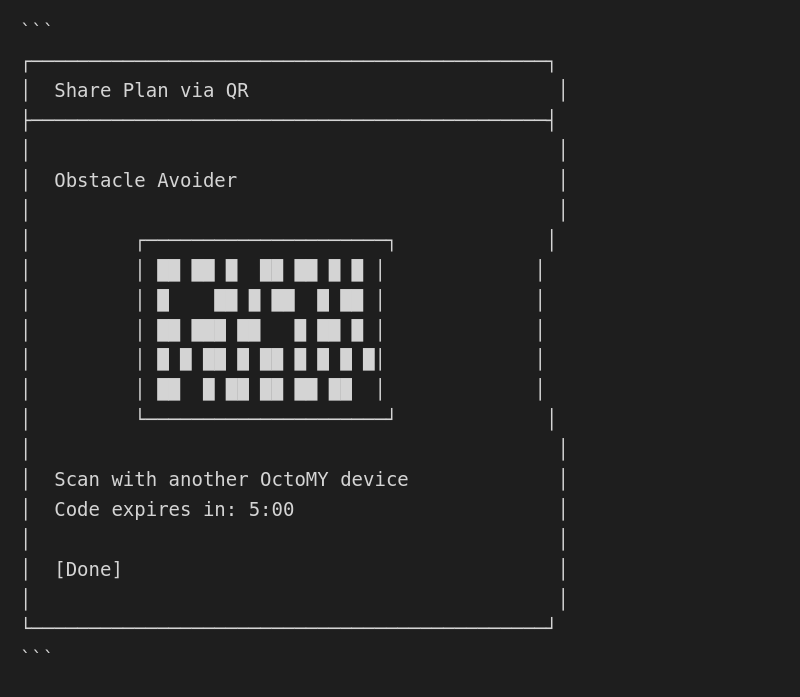

Share via QR code

Generate a QR code for quick sharing:

1. Select [Share via QR] during export
2. Other device scans the code
3. Plan is transferred directly

Note: QR codes can only transfer small plans. For large plans, use file export.

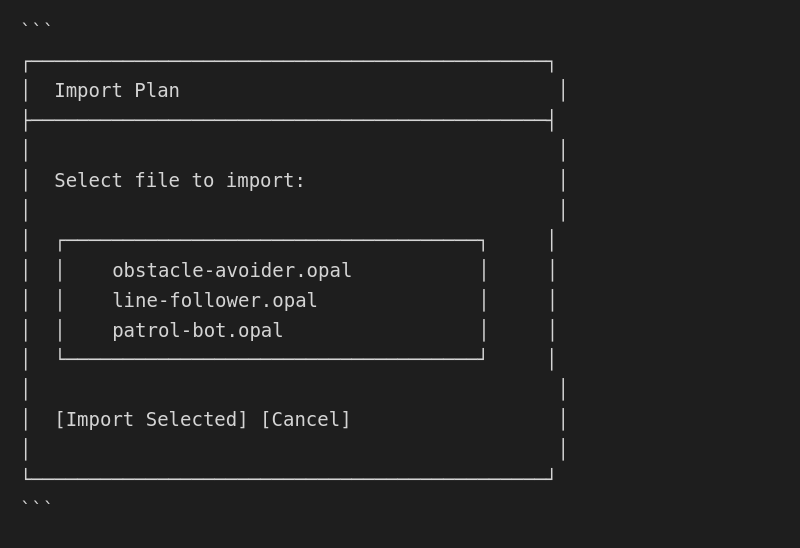

Import a plan

From file

1. Open ☰ Menu → Plans
2. Tap [Import]
3. Select the .opal file

From QR code

1. Tap [Import] → [Scan QR]
2. Point camera at the QR code
3. Confirm import

Via command line

# Import a plan
./agent --import-plan ~/my-plan.opal

# Import and auto-configure
./agent --import-plan ~/my-plan.opal --auto-configure

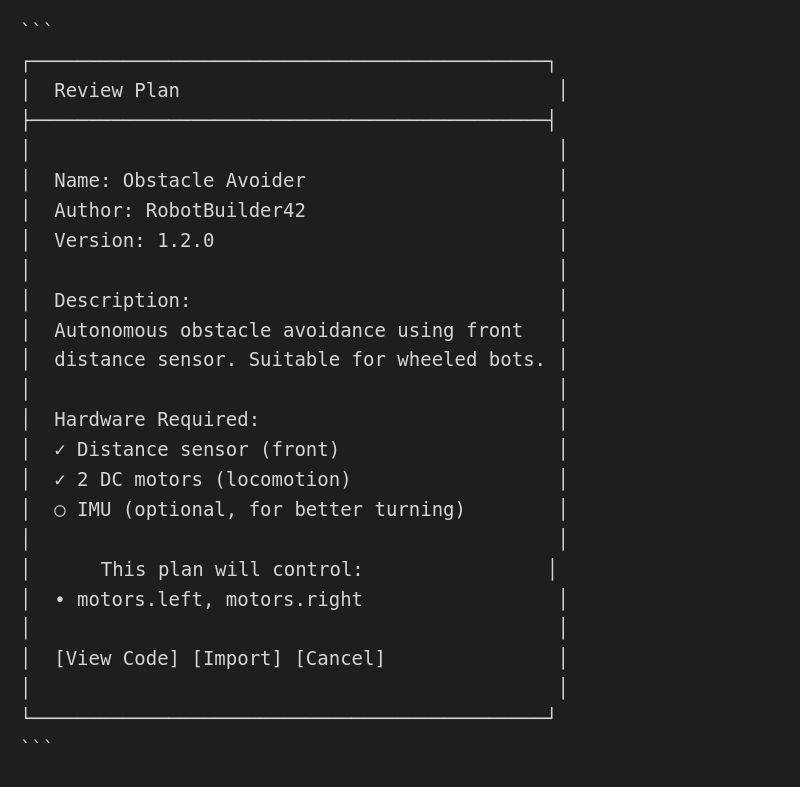

Review before import

Always review imported plans before running:

Security notice

Plans can control your robot's hardware. Before importing:

1. Review the code - Check what it does
2. Verify the source - Only import from trusted sources
3. Test carefully - Run with robot safely secured first

Plan package format

.opal file structure

#!octomy-plan v1.0
# @name Obstacle Avoider
# @author RobotBuilder42
# @version 1.2.0
# @description Autonomous obstacle avoidance
# @requires sensors.distance.front
# @requires motors.left
# @requires motors.right
# @optional sensors.imu

plan ObstacleAvoider {
    # Plan code here...
}

.zip package

For plans with assets:

obstacle-avoider.zip
├── plan.opal           # Main plan code
├── metadata.json       # Plan metadata
├── config.json         # Default configuration
├── README.md           # Documentation
└── assets/
    ├── sounds/
    │   └── alert.wav
    └── expressions/
        └── worried.png

Plan metadata

metadata.json

{
    "name": "Obstacle Avoider",
    "author": "RobotBuilder42",
    "version": "1.2.0",
    "license": "MIT",
    "description": "Autonomous obstacle avoidance using front distance sensor.",
    "tags": ["navigation", "obstacle", "autonomous"],
    "requirements": {
        "sensors": ["distance.front"],
        "actuators": ["motors.left", "motors.right"]
    },
    "optional": {
        "sensors": ["imu"]
    },
    "configuration": {
        "safe_distance": {
            "type": "number",
            "default": 40,
            "min": 10,
            "max": 100,
            "description": "Distance threshold in cm"
        }
    }
}

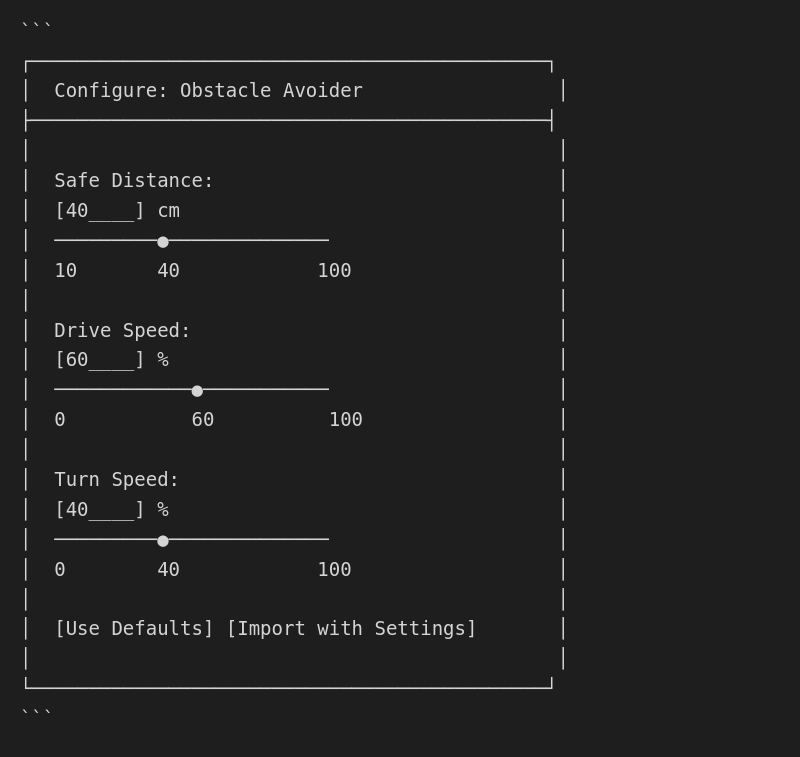

Configuration on import

When importing a plan with configurable options:

Plan library

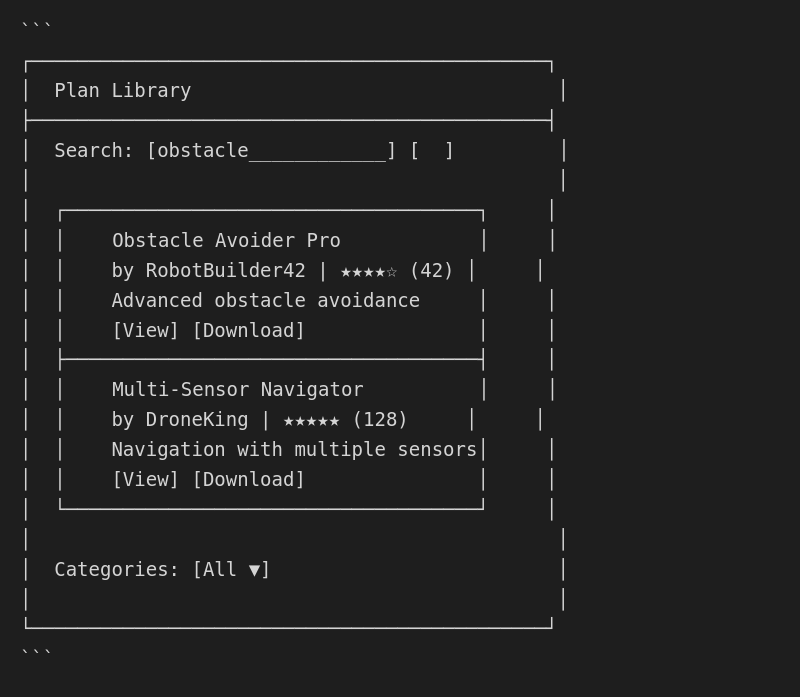

Browse community plans

Access shared plans from the community:

1. ☰ Menu → Plans → [Browse Library]

Publish your plan

Share your plan with the community:

1. Export your plan
2. ☰ Menu → Plans → [Publish]
3. Fill in details and submit

Requirements:

• Plan must be tested and working
• Include description and documentation
• Specify hardware requirements
• Follow community guidelines

Version control

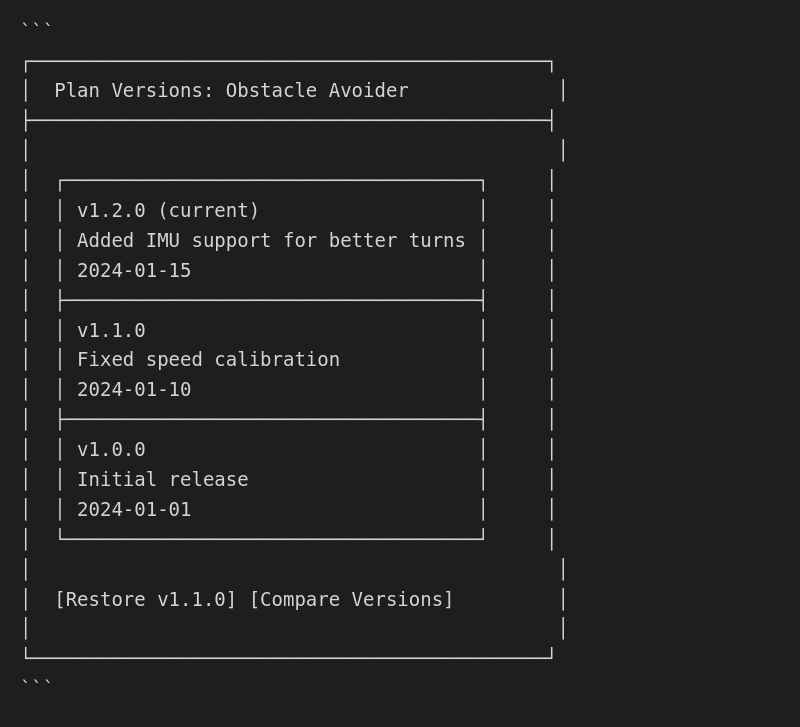

Plan versions

Backup all plans

Export all plans

# Command line backup
./agent --export-all-plans --output ~/octomy-backup/

# Creates:
# ~/octomy-backup/
# ├── obstacle-avoider.opal
# ├── line-follower.opal
# └── patrol-bot.opal

Restore from backup

# Restore all plans
./agent --import-plans ~/octomy-backup/
