Event Flow

How LLM interactions flow through OctoMY™, from user input to robot action.

Pro Tip

The event database is your debugging best friend. Every sensor reading, LLM decision, and command execution is logged with timestamps and correlation IDs. When something goes wrong, you can trace the exact sequence of events that led to the issue. Use the event query API to search historical events.

Overview

LLM interactions in OctoMY™ follow a structured flow:

User Input → LLM Processing → OPAL Validation → Strategic Layer → Barrier → Embedded Layer

Each stage has specific responsibilities and safety checks.

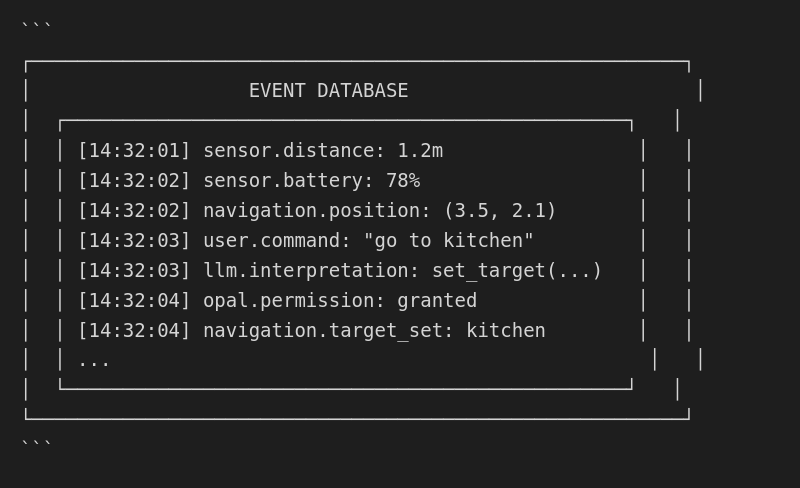

The event database

All platform events stream into a central event database:

Event properties

Natural language command flow

When a user issues a natural language command:

Step 1: User input

User: "Go to the kitchen and check the temperature"

Step 2: LLM interpretation

The LLM parses intent and generates OPAL commands:

[
  {"command": "set_target", "location": "kitchen"},
  {"command": "query_sensor", "sensor": "temperature", "on_arrival": true}
]

Step 3: OPAL validation

Each command is validated:

Command 1: set_target
  ├─ Check permission: navigation.set_target
  ├─ Validate parameters: location exists
  └─ Result: APPROVED

Command 2: query_sensor
  ├─ Check permission: sensor.read
  ├─ Validate parameters: sensor exists
  └─ Result: APPROVED

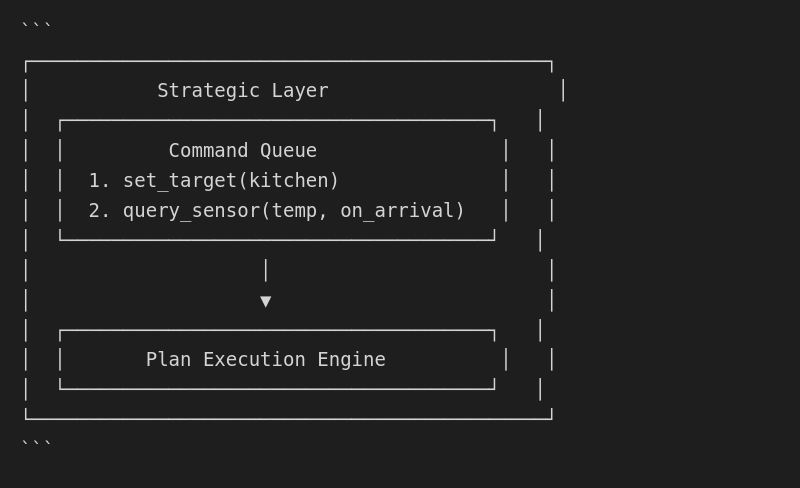

Step 4: Strategic layer execution

Commands are queued for execution:

Step 5: Abstract target generation

Strategic layer produces abstract targets:

Target: navigate_to
  location: kitchen
  callback: query_temperature

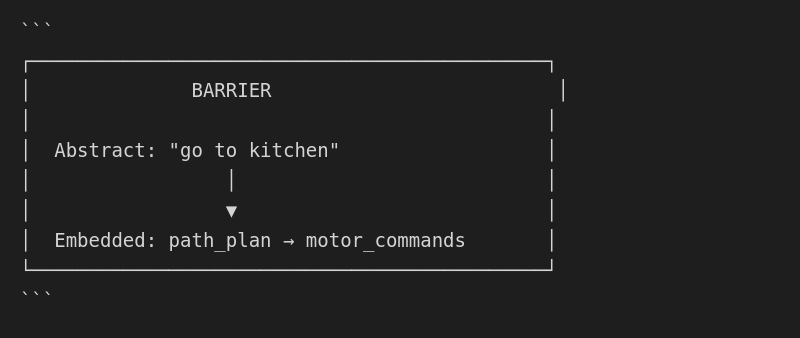

Step 6: Barrier crossing

Abstract targets cross to embedded layer:

Step 7: Embedded execution

Embedded layer executes safely:

Path Planner → Obstacle Avoidance → Motor Control
     │              │                    │
     └──────────────┴────────────────────┘
              Safety Monitors

Event-driven LLM reactions

LLMs can subscribe to events and react autonomously (with permissions):

Subscription setup

{
  "command": "subscribe",
  "event_type": "sensor.obstacle_detected",
  "handler": "evaluate_and_respond"
}

Event trigger

Event: sensor.obstacle_detected
  distance: 0.5m
  direction: front

LLM response

{
  "interpretation": "Obstacle blocking path",
  "action": {"command": "navigation.reroute"},
  "explanation": "Found alternative path around obstacle"
}

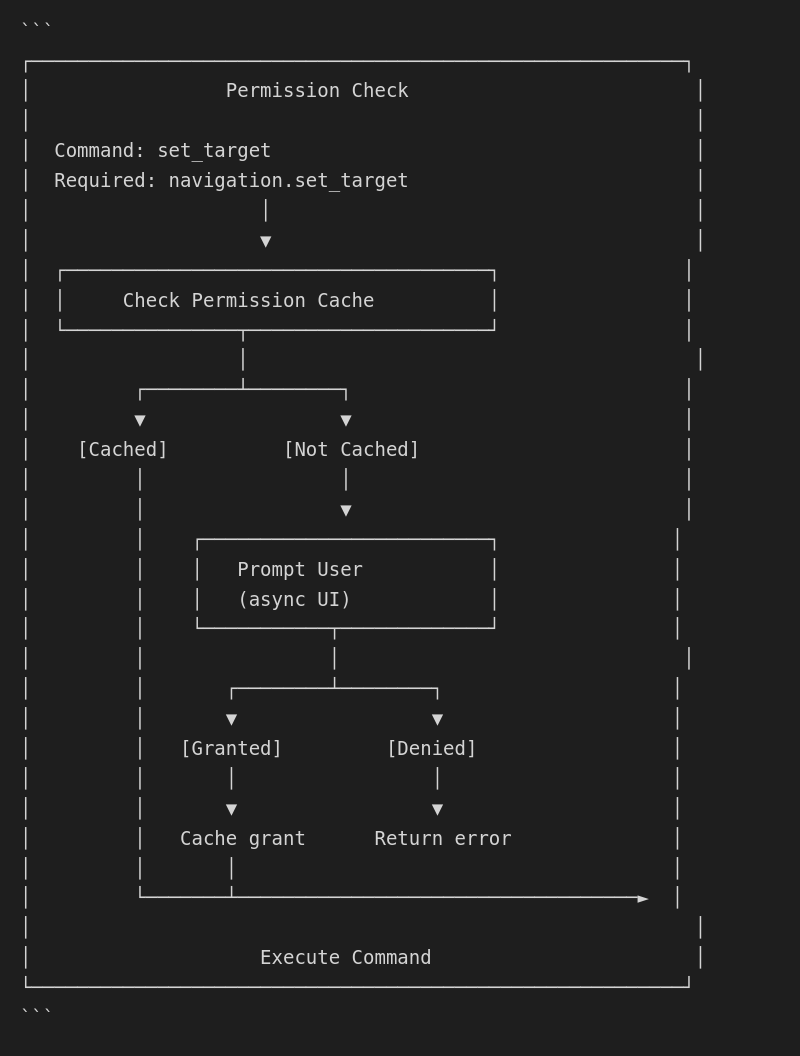

Permission flow

Detailed permission checking flow:

Error recovery flow

When errors occur:

Detection

Event: navigation.error
  type: path_blocked
  location: (2.1, 3.4)

LLM notification

{
  "event": "error",
  "context": "Navigation to kitchen failed",
  "reason": "Path blocked at (2.1, 3.4)",
  "options": ["reroute", "wait", "abort"]
}

LLM decision

{
  "decision": "reroute",
  "reasoning": "Alternative path available via living room"
}

Recovery execution

New path planned → Resume navigation

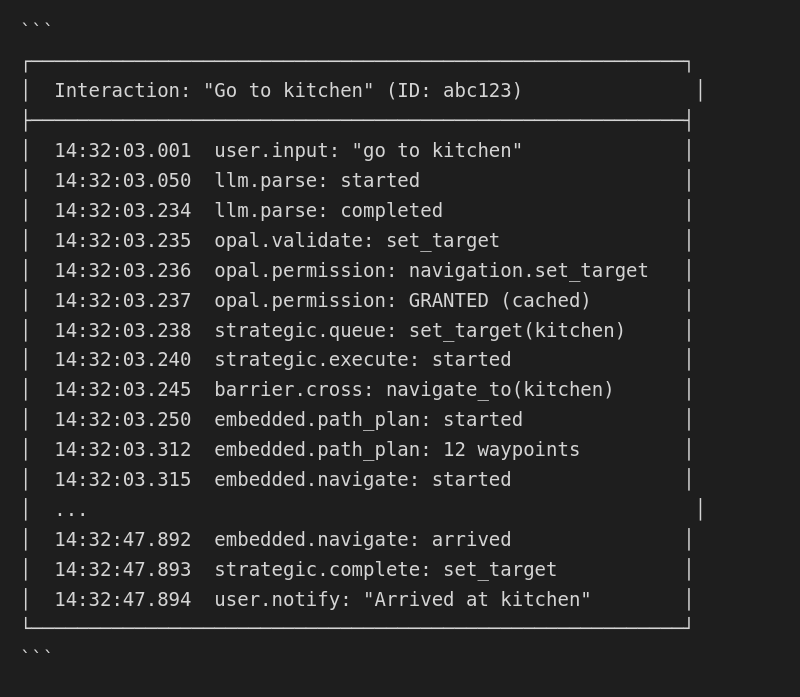

Audit trail

Complete audit trail for any interaction:

Real-time event access

LLMs can query historical events:

{
  "command": "query_events",
  "filter": {
    "type": "sensor.*",
    "since": "-5m"
  }
}

Response:
{
  "events": [
    {"timestamp": "...", "type": "sensor.distance", "value": 1.2},
    {"timestamp": "...", "type": "sensor.temperature", "value": 22.5},
    ...
  ]
}

This enables context-aware responses based on recent history.
