SyncStatusLegendWidget

Legend for the per-chunk swarm sync-status overlay marks (§SSV-9)

Properties

Property	Value
ID	`SyncStatusLegendWidget`
Path	`paint/sync/SyncStatusLegendWidget`
Tags	paint, swarm, sync, legend, overlay, canvas
Modes	all, scheduled, intransit, synced, attention

SyncStatusLegendWidget in all mode

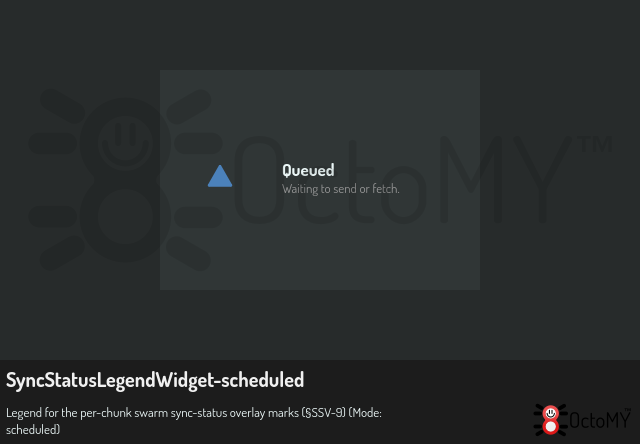

SyncStatusLegendWidget in scheduled mode

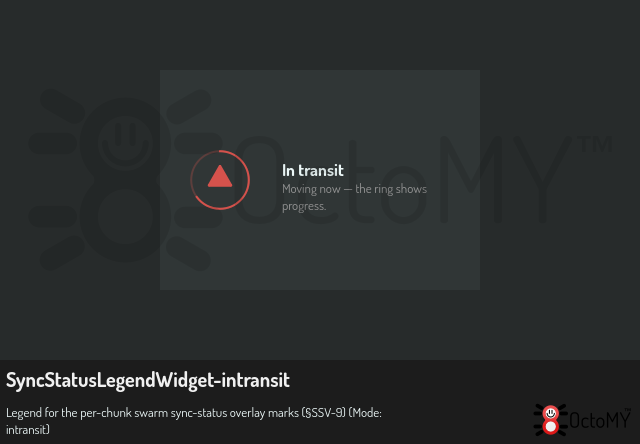

SyncStatusLegendWidget in intransit mode

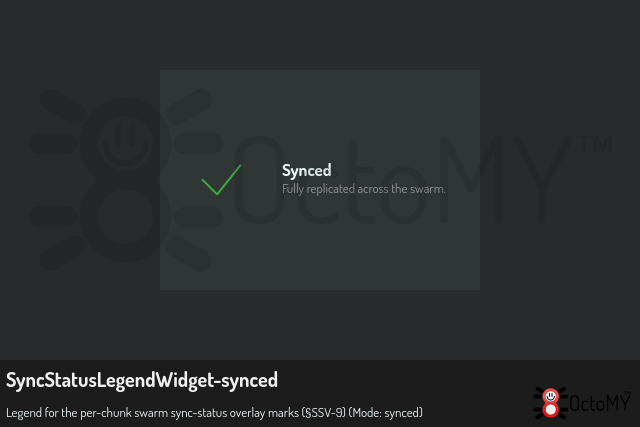

SyncStatusLegendWidget in synced mode

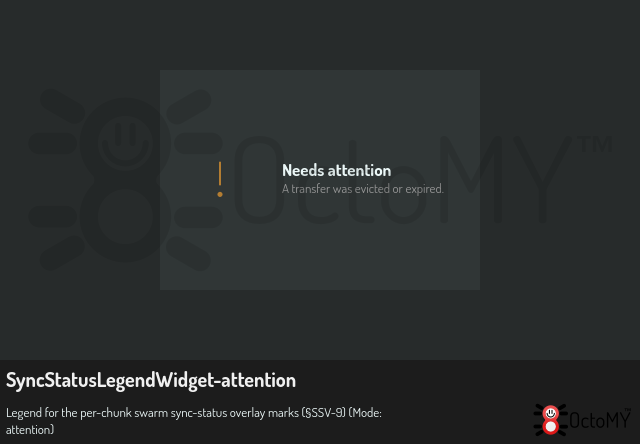

SyncStatusLegendWidget in attention mode
