BoardPinSelector

Pin selector for Arduino/compatible boards

Properties

ID: BoardPinSelector
Path: misc/board/BoardPinSelector
Tags: arduino, board, pin, selector, hardware
Modes: digital_out, digital_in, analog_in, pwm

Modes

digital_out

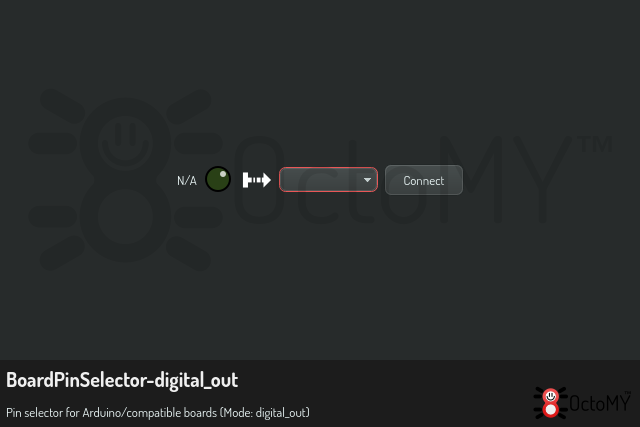

BoardPinSelector in digital_out mode

digital_in

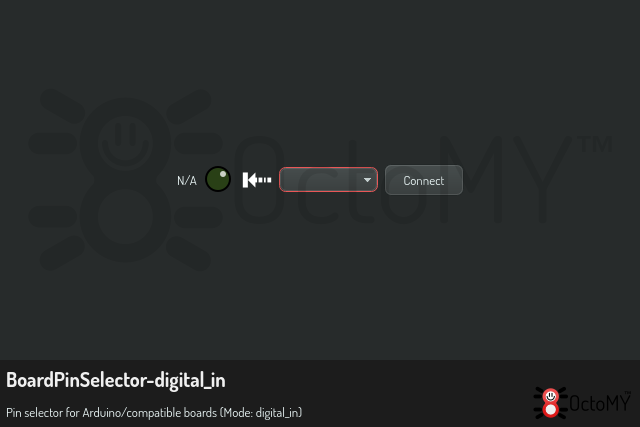

BoardPinSelector in digital_in mode

analog_in

BoardPinSelector in analog_in mode

pwm

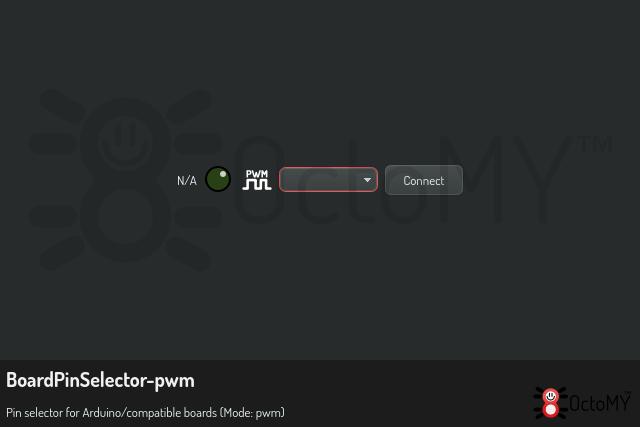

BoardPinSelector in pwm mode
