WidgetVSI

Vertical speed indicator showing climb/descent rate

Properties

  • ID: WidgetVSI
  • Path: hud/instruments/WidgetVSI
  • Tags: hud, flight, instrument, vertical, vsi, climb
  • Modes: level, climbing, descending

Modes

level

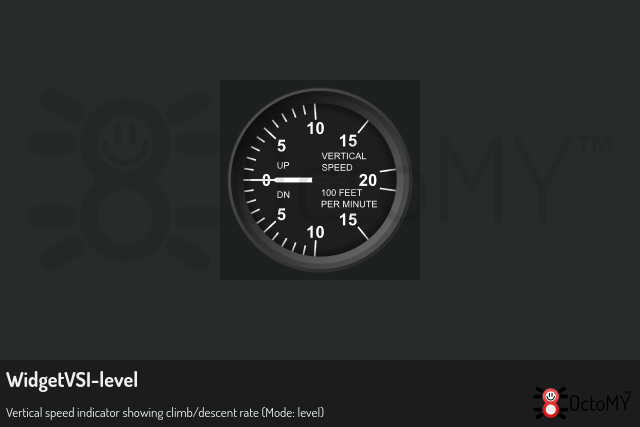

WidgetVSI in level mode
WidgetVSI in level mode

climbing

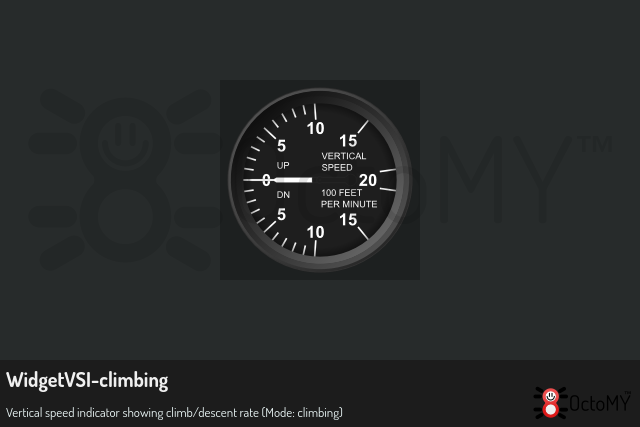

WidgetVSI in climbing mode
WidgetVSI in climbing mode

descending

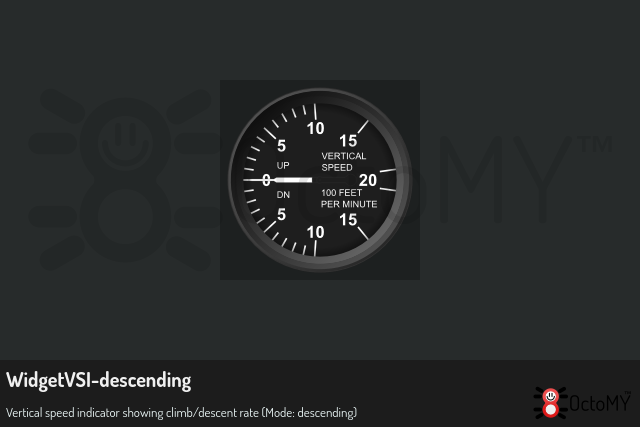

WidgetVSI in descending mode
WidgetVSI in descending mode
  • HUDActivity - Heads-up display activity for real-time status overlay
  • WidgetADI - Artificial horizon showing pitch and roll attitude
  • WidgetALT - Altimeter showing altitude in feet
  • WidgetASI - Airspeed indicator showing speed in knots
