WidgetNAV

Navigation display with VOR/ILS indicators

Properties

  • ID: WidgetNAV
  • Path: hud/instruments/WidgetNAV
  • Tags: hud, flight, instrument, navigation, nav
  • Modes: centered, left, right

Modes

centered

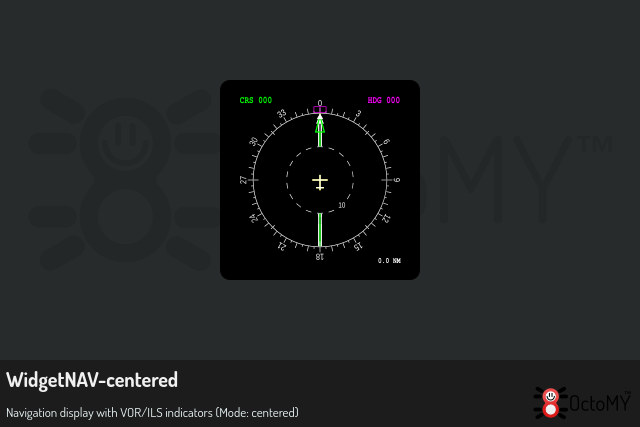

WidgetNAV in centered mode
WidgetNAV in centered mode

left

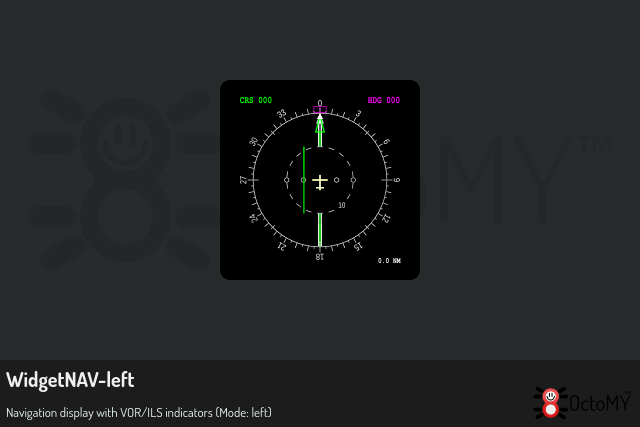

WidgetNAV in left mode
WidgetNAV in left mode

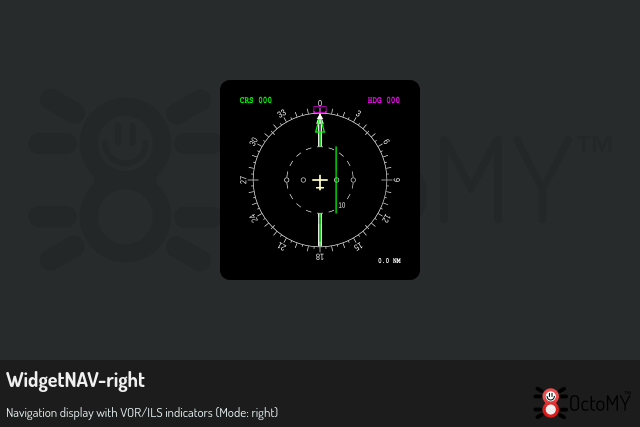

WidgetNAV in right mode
WidgetNAV in right mode
