HeatmapWidget

Core-by-time heatmap with current-value bars (cool-to-hot color scale)

Properties

• ID: HeatmapWidget
• Path: components/monitor/HeatmapWidget
• Tags: monitor, heatmap, cpu, gpu, visualization
• Modes: default, high_load

Modes

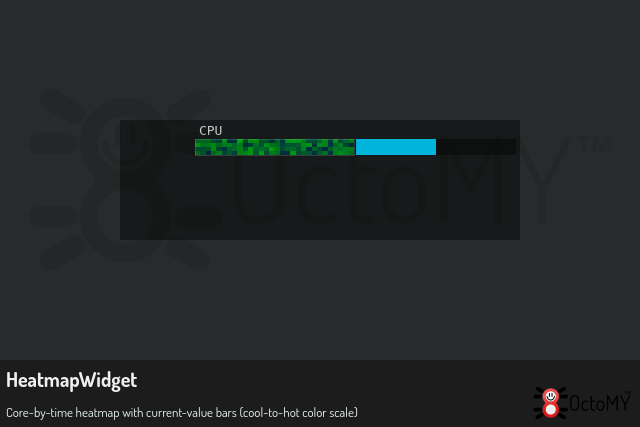

default

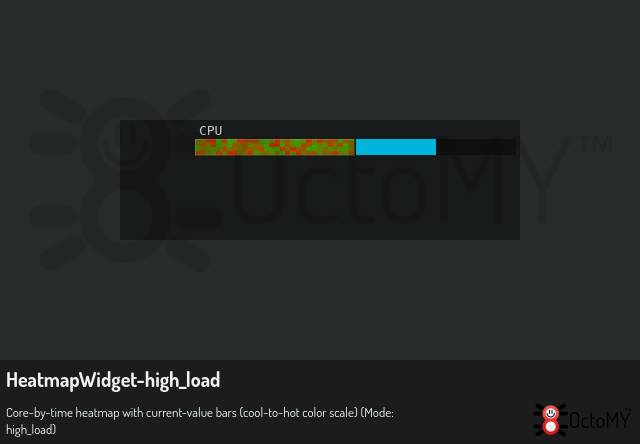

high_load
