Store Keys

Reference for OctoMY™'s key storage system, cryptographic data formats, and identity management.

Security Consideration

The keystore.json file contains your node's private key. Never share this file - losing control of your private key means someone can impersonate your node. Back it up securely, and if compromised, regenerate keys (which will require re-pairing with all peers).

Store architecture

The run-time data of each OctoMY node is kept in a Store. The store is a QVariantMap tree with wrappers to manipulate the data asynchronously.

Core concepts

Store API interface

The basic interface:

// Get data asynchronously
get(Key key, Callback(Status status, Data *data))

// Put data with mode
put(Key key, Data *data, Mode mode)

Where:

• Key - Identifier for the data (XPath-like path)
• Callback - Function called on completion
• Status - Result state (success, not found, error, etc.)
• Data - The actual data, or null
• Mode - How to put the data (create, update, replace, etc.)

Key paths

Keys use an XPath-like syntax to navigate the store tree:

keystore.localkey.pub          # Local public key
keystore.remotekey[CAFEBABE]   # Remote key by ID
personality.name               # Personality name
peers[0].trustLevel            # First peer's trust level

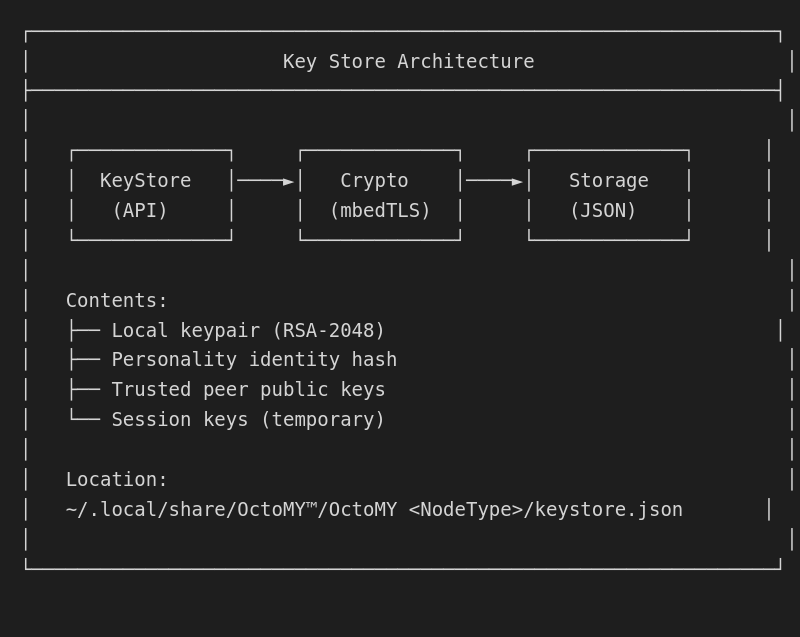

Key store overview

OctoMY™ uses a secure key storage system for cryptographic material:

Key types

Local keypair

The node's RSA-2048 keypair for identity and encryption:

Personality identity

The node's unique identity derived from the public key:

Peer keys

Public keys of trusted peers:

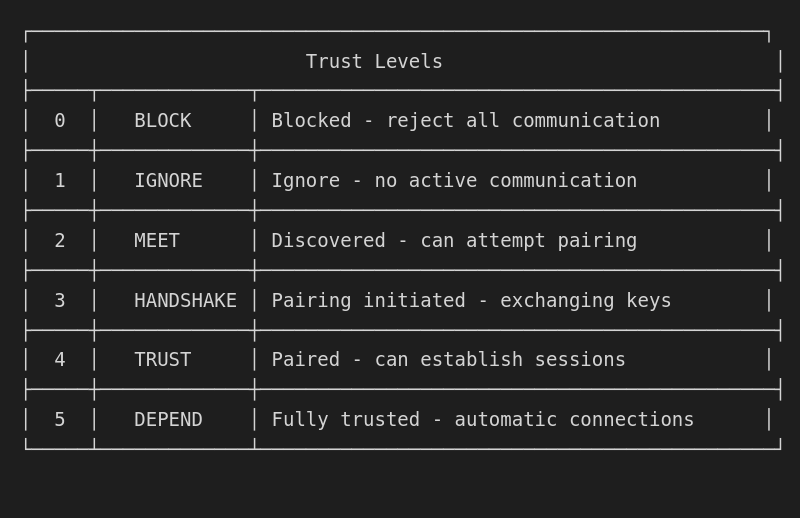

Trust levels

Peers are assigned trust levels that determine capabilities:

Trust level capabilities

Key store format

JSON structure

{
  "version": 1,
  "created": "2024-01-15T10:30:00Z",
  "modified": "2024-01-20T14:45:00Z",
  "localKey": {
    "algorithm": "RSA-2048",
    "publicKey": "-----BEGIN PUBLIC KEY-----\nMIIBIjANBgkq...",
    "privateKey": "-----BEGIN PRIVATE KEY-----\nMIIEvgIBADAN...",
    "created": "2024-01-15T10:30:00Z"
  },
  "personality": {
    "id": "a1b2c3d4e5f6...",
    "name": "MyRobot",
    "nodeType": "Agent",
    "created": "2024-01-15T10:30:00Z"
  },
  "peers": [
    {
      "id": "f6e5d4c3b2a1...",
      "name": "MyRemote",
      "nodeType": "Remote",
      "publicKey": "-----BEGIN PUBLIC KEY-----\nMIIBIjANBgkq...",
      "trustLevel": 5,
      "firstSeen": "2024-01-16T09:00:00Z",
      "lastSeen": "2024-01-20T14:45:00Z",
      "addresses": [
        "192.168.1.100:8125",
        "10.0.0.50:8125"
      ]
    }
  ],
  "sessions": []
}

Key store API

Loading and saving

#include "sec/KeyStore.hpp"

// Create key store
KeyStore store;

// Load from file
if (!store.load("/path/to/keystore.json")) {
    qWarning() << "Failed to load key store";
}

// Save to file
if (!store.save("/path/to/keystore.json")) {
    qWarning() << "Failed to save key store";
}

Local key management

// Check if local key exists
if (!store.hasLocalKey()) {
    // Generate new keypair
    store.generateLocalKey(2048);  // RSA-2048
}

// Get local public key
QByteArray publicKey = store.localPublicKey();

// Get personality ID
QString personalityId = store.personalityId();

Peer management

// Add new peer
Peer peer;
peer.id = "abc123...";
peer.name = "NewPeer";
peer.publicKey = peerPublicKey;
peer.trustLevel = TrustLevel::MEET;
store.addPeer(peer);

// Find peer by ID
Peer* found = store.findPeer("abc123...");
if (found) {
    qDebug() << "Found peer:" << found->name;
}

// Update trust level
store.setTrustLevel("abc123...", TrustLevel::TRUST);

// Remove peer
store.removePeer("abc123...");

// Get all peers
QList<Peer> peers = store.allPeers();

// Get peers by trust level
QList<Peer> trusted = store.peersByTrustLevel(TrustLevel::TRUST);

Key operations

// Sign data
QByteArray signature = store.sign(data);

// Verify signature
bool valid = store.verify(data, signature, peerPublicKey);

// Encrypt for peer
QByteArray encrypted = store.encryptForPeer("abc123...", plaintext);

// Decrypt from peer
QByteArray decrypted = store.decryptFromPeer("abc123...", ciphertext);

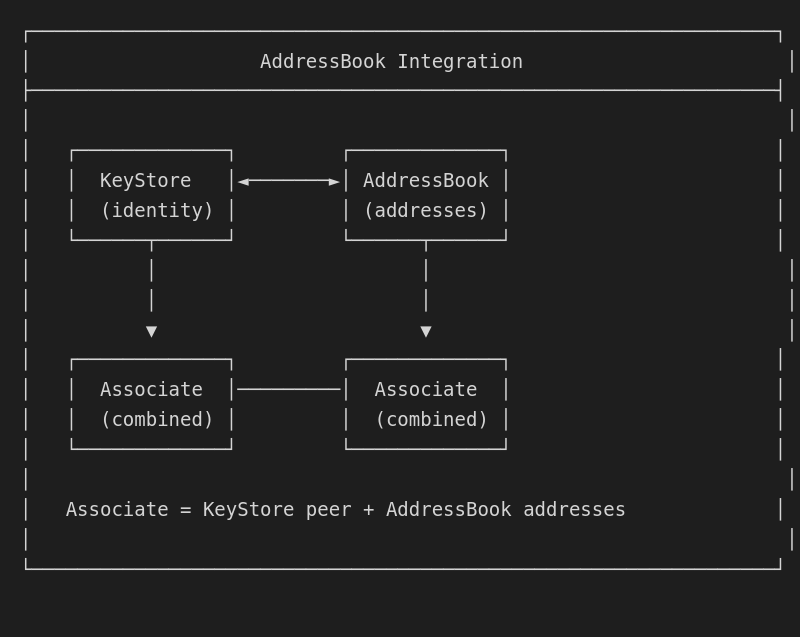

Address book integration

The key store integrates with the AddressBook for peer management:

Associate structure

class Associate {
public:
    // Identity (from KeyStore)
    QString id() const;            // Personality ID
    QString name() const;          // Display name
    NodeType nodeType() const;     // Agent/Remote/Hub
    QByteArray publicKey() const;  // RSA public key
    TrustLevel trustLevel() const; // Trust level

    // Addresses (from AddressBook)
    QList<CarrierAddress> addresses() const;
    CarrierAddress bestAddress() const;

    // Connection state
    bool isConnected() const;
    quint64 lastSeen() const;
};

Key store keys reference

Root keys

localKey object

personality object

peers array item

Security considerations

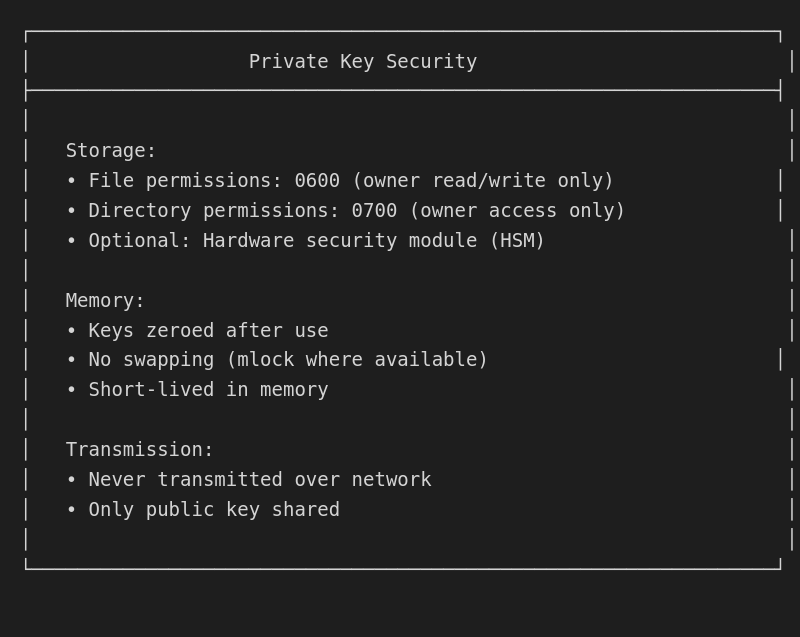

Private key protection

File permissions

# Recommended permissions
chmod 600 ~/.local/share/OctoMY™/*/keystore.json
chmod 700 ~/.local/share/OctoMY™/*/

Backup and recovery

# Backup key store (keep secure!)
cp ~/.local/share/OctoMY™/OctoMY\ Agent/keystore.json \
   ~/secure-backup/keystore-backup.json

# Restore key store
cp ~/secure-backup/keystore-backup.json \
   ~/.local/share/OctoMY™/OctoMY\ Agent/keystore.json

Warning: Losing your private key means losing your identity. All peers will need to re-pair with your new identity.

Key generation

Generating new identity

// Generate completely new identity
void generateNewIdentity(KeyStore& store, const QString& name) {
    // Generate RSA-2048 keypair
    store.generateLocalKey(2048);

    // Set personality name
    store.setPersonalityName(name);

    // Save to disk
    store.save();

    qDebug() << "New identity:" << store.personalityId();
}

Regenerating keys

// Regenerate keys (loses pairing!)
void regenerateKeys(KeyStore& store) {
    // Warning: This invalidates all peer relationships
    qWarning() << "Regenerating keys - all pairings will be lost!";

    // Generate new keypair
    store.generateLocalKey(2048);

    // Clear peer list (they won't recognize us)
    store.clearPeers();

    // Save
    store.save();
}

Migration

Upgrading store format

void migrateKeyStore(KeyStore& store) {
    int version = store.version();

    if (version < 2) {
        // Migrate from v1 to v2
        // Add new fields, convert formats
        store.setVersion(2);
    }

    store.save();
}

Exporting/importing peers

// Export peer list (for sharing)
QJsonArray exportPeers(const KeyStore& store) {
    QJsonArray peers;
    for (const Peer& p : store.allPeers()) {
        QJsonObject obj;
        obj["id"] = p.id;
        obj["name"] = p.name;
        obj["publicKey"] = QString(p.publicKey.toBase64());
        peers.append(obj);
    }
    return peers;
}

// Import peer list
void importPeers(KeyStore& store, const QJsonArray& peers) {
    for (const QJsonValue& v : peers) {
        QJsonObject obj = v.toObject();
        Peer p;
        p.id = obj["id"].toString();
        p.name = obj["name"].toString();
        p.publicKey = QByteArray::fromBase64(
            obj["publicKey"].toString().toUtf8());
        p.trustLevel = TrustLevel::MEET;  // Default to MEET
        store.addPeer(p);
    }
    store.save();
}

Debugging

Inspecting key store

# View key store (JSON formatted)
cat ~/.local/share/OctoMY™/OctoMY\ Agent/keystore.json | python3 -m json.tool

# Extract personality ID
jq '.personality.id' ~/.local/share/OctoMY™/OctoMY\ Agent/keystore.json

# List peers
jq '.peers[] | {name, trustLevel}' ~/.local/share/OctoMY™/OctoMY\ Agent/keystore.json

Common issues
