Node Lifecycle

How OctoMY™ nodes are launched, configured, and activated.

Pro Tip

Understanding the service level system is key to debugging startup issues. Services are organized into levels (Always, Discovery) that control when they activate. If a service isn't starting, check which level it's registered to.

Overview

While Agents, Remotes, and Hubs serve widely different purposes, there is a large overlap in features under the hood. All node types follow the same lifecycle pattern for initialization.

Common node components

All node types share these core components:

Core identity & security

Communication

Discovery & external services

Hardware (Agent-specific)

State

Service wrappers

Each major component is wrapped in a service for lifecycle management:

Service levels

Services are organized into levels that control when they are active:

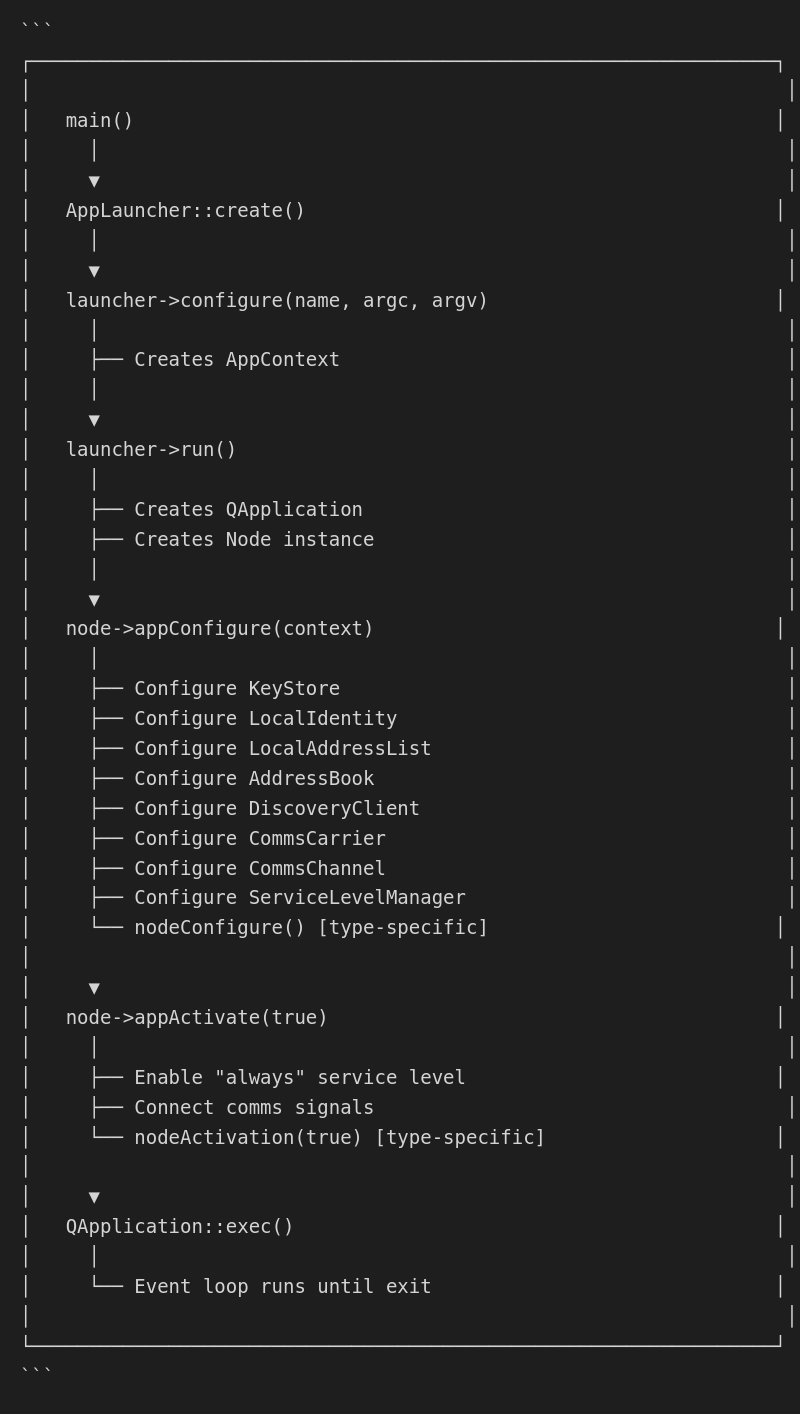

Launch sequence

Step 1: Launcher instantiation

auto agentMain = QSharedPointer<AppLauncher<Agent>>::create();

The launcher is a template class specialized for the node type (Agent, Remote, or Hub).

Step 2: Launcher configuration

agentMain->configure("agent", argc, argv);

This creates a new AppContext containing:

• AppCommandLineParser - Parsed command line options
• QProcessEnvironment - System environment from OS
• Command line arguments

Step 3: Launcher run

auto ret = agentMain->run();
exit(ret);

The run phase:

1. Instantiates QCoreApplication (headless) or QApplication (GUI) - or detects and defers to existing event loop
2. Activates the application:
   • Instantiates the Node
   • Calls appConfigure() on node with launcher "shared this"
   • Calls appActivate() on node
   • Hooks signals for nodeActivateChanged and nodeRequestExit
   • Queues node->appActivate(true) on event loop
3. Initializes executable resources (icons, images, fonts, etc.)
4. Executes the event loop if not already started

Node configuration (appConfigure)

The appConfigure() method initializes all node components in a specific order:

Configuration sequence

void Node::appConfigure(QSharedPointer<AppContext> context) {
    // 1. Apply UI style

    // 2. Configure keystore
    configureKeyStore(baseFolder + "/keystore.json");
    configureKeyStoreService();

    // 3. Configure local identity
    configureLocalIdentity(baseFolder + "/local_identity.json");
    configureLocalIdentityService();

    // 4. Configure local address list
    configureLocalAddressList(defaultPortForNodeType);
    configureLocalAddressListService();

    // 5. Configure address book
    configureAddressBook(baseFolder + "/addressbook.json");
    configureAddressBookService();

    // 6. Configure discovery client
    configureDiscoveryClient(nodeType, timingConfig);
    configureDiscoveryClientService();

    // 7. Configure comms carrier
    configureCommsCarrier();
    configureCommsCarrierService();

    // 8. Configure comms channel
    configureCommsChannel();
    configureCommsChannelService();

    // 9. Configure service level manager
    configureServiceLevelManager();
    registerServices("always");
    registerServices("discovery");

    // 10. Call node-specific configuration
    nodeConfigure();
}

Node-specific configuration (nodeConfigure)

Each node type implements nodeConfigure() for type-specific setup. For example, Agent:

void Agent::nodeConfigure() {
    // Configure agent config store
    configureAgentConfigStore(baseFolder + "/agent_config.json");
}

Node activation (appActivate)

The appActivate() method brings the node online:

void Node::appActivate(bool activate) {
    if (activate) {
        // Enable "always" service level
        serviceActivation("always", true);

        // Hook comms signals
        connectCommsSignals();

        // Call node-specific activation
        nodeActivation(true);
    } else {
        nodeActivation(false);
        serviceActivation("always", false);
    }
}

Node-specific activation (nodeActivation)

Each node type implements nodeActivation(). For Agent:

void Agent::nodeActivation(bool activate) {
    if (activate) {
        // Activate agent config store
        agentConfigStore->activate();

        // Synchronize agent config store
        agentConfigStore->synchronize();
    }
}

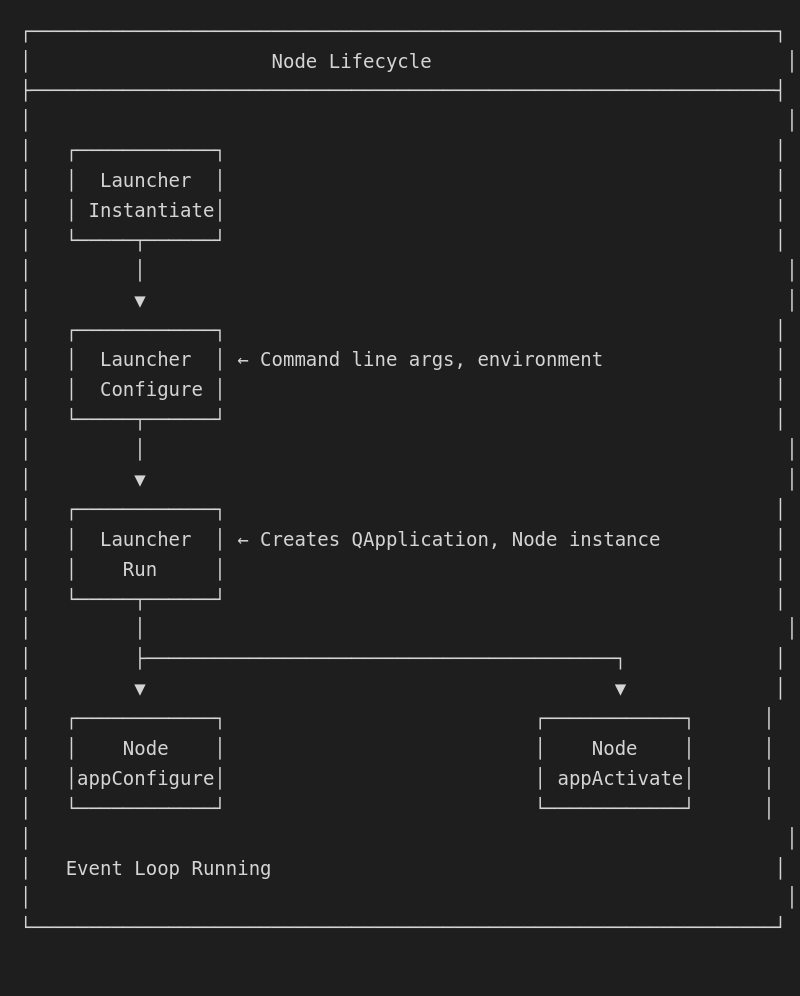

Lifecycle diagram

File locations

During configuration, nodes create files in their base folder:

~/.local/share/OctoMY™/OctoMY <NodeType>/<Personality>/
├── keystore.json           # Cryptographic keys
├── local_identity.json     # Node identity
├── addressbook.json        # Known peers
└── <type>_config.json      # Type-specific config (e.g., agent_config.json)
